Digital Transmission Range (TR) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the Mass Air Flow (MAF) sensor electrical connector and the wiring harness fastener from the Air Cleaner (ACL) assembly.
    Fig 1: Locating Mass Air Flow Sensor Electrical Connector And ACL Assembly Fastener
    G07931116Courtesy of FORD MOTOR CO.
  3. Disconnect the brake booster vacuum hose from the ACL outlet pipe.
    Fig 2: Locating Brake Booster Vacuum Hose
    G07931117Courtesy of FORD MOTOR CO.
  4. Disconnect the engine breather from the ACL assembly.
    Fig 3: Locating Engine Breather Of ACL Assembly
    G07931118Courtesy of FORD MOTOR CO.
  5. Remove the ACL assembly bracket bolt.

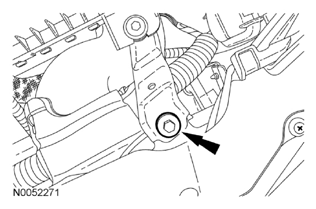

    Fig 4: Locating ACL Assembly Bracket Bolt
    G07931119Courtesy of FORD MOTOR CO.
  6. Loosen the ACL outlet pipe clamp at the Throttle Body (TB) and remove the ACL and ACL outlet pipe assembly.

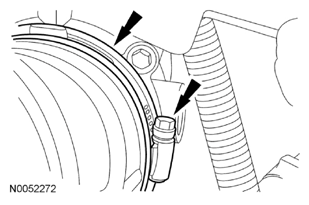

    Fig 5: Locating Air Cleaner Outlet Pipe And Pipe Clamp
    G07931120Courtesy of FORD MOTOR CO.
  7. Remove the transmission fluid drain plug and allow the transmission fluid to drain.

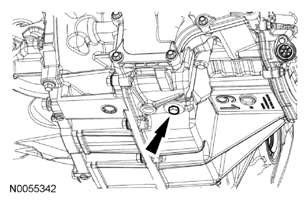

    Fig 6: Locating Transmission Fluid Drain Plug
    G07931121Courtesy of FORD MOTOR CO.
  8. Install the transmission fluid drain plug.
    • Tighten to 9 Nm (80 lb-in).
      Fig 7: Locating Transmission Fluid Drain Plug
      G07931122Courtesy of FORD MOTOR CO.
  9. Disconnect the selector lever cable end from the manual control lever.

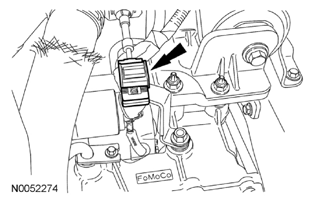

    Fig 8: Locating Selector Lever Cable End
    G07931123Courtesy of FORD MOTOR CO.
  10. Remove the nut and the manual control lever.
    Fig 9: Locating Manual Control Lever And Nut
    G07931124Courtesy of FORD MOTOR CO.
  11. Loosen the transmission fluid cooler tube fitting from the thermal bypass valve.
    Fig 10: Locating Transmission Fluid Cooler Tube Fitting
    G07931125Courtesy of FORD MOTOR CO.
  12. Remove and discard the transmission fluid cooler tube bolt and remove the transmission fluid cooler tube.

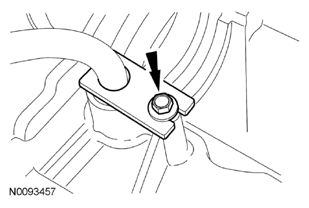

    Fig 11: Locating Transmission Fluid Cooler Tube Bolt
    G07931126Courtesy of FORD MOTOR CO.
  13. Inspect the transaxle case to make sure that the transmission fluid cooler tube seal and backing ring were removed with the transmission fluid cooler tube and are not stuck in the transaxle case. If the transmission fluid cooler tube seal or backing ring are stuck in the transaxle case, remove the seal and backing ring.

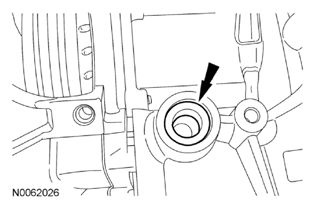

    Fig 12: Locating Transmission Fluid Cooler Tube Seal
    G07931127Courtesy of FORD MOTOR CO.
  14. Disconnect the transaxle electrical connector.

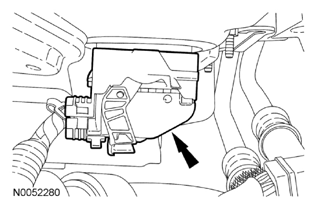

    Fig 13: Locating Transaxle Electrical Connector
    G07931128Courtesy of FORD MOTOR CO.
  15. Remove the transmission fluid cooler tube bracket nuts, pull the transmission fluid cooler thermal bypass valve straight up and position it aside.

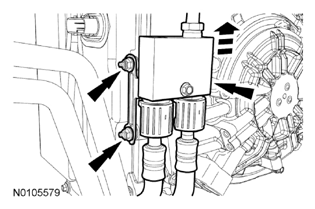

    Fig 14: Pulling Transmission Fluid Cooler Thermal Bypass Valve
    G07931129Courtesy of FORD MOTOR CO.
    16. NOTE: Note the location of the studbolts for assembly.

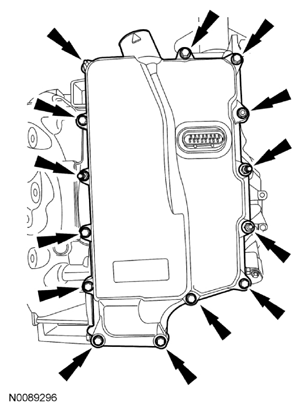

    Fig 15: Locating Main Control Cover Bolts
    G07931130Courtesy of FORD MOTOR CO.
  16. Remove the bolts and the main control cover.
  17. Disconnect the Transmission Range (TR) sensor electrical connector.
    1. Slide the lock over.
    2. Press the tab and disconnect the connector.
      Fig 16: Locating Transmission Range Sensor Electrical Connector
      G07931131Courtesy of FORD MOTOR CO.
  18. Disconnect the Turbine Shaft Speed (TSS) and Output Shaft Speed (OSS) sensor electrical connectors.
    Fig 17: Locating Turbine Shaft Speed And Output Shaft Speed Sensor Connectors
    G07931132Courtesy of FORD MOTOR CO.
    19. NOTE: The solenoid body should be handled with care, damage to the solenoid body may occur.
    NOTE: Note the location of the different length bolts for assembly.

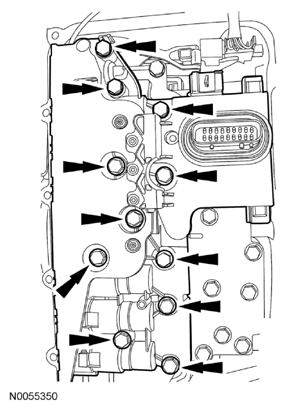

    Fig 18: Locating Solenoid Body And Bolts
    G07931133Courtesy of FORD MOTOR CO.
  19. Remove the bolts and the solenoid body.
    20. NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body can occur.
    NOTE: Use care not to break the alignment tabs when removing the solenoid body filter.
    Fig 19: Locating Solenoid Body Filter Assembly
    G07931134Courtesy of FORD MOTOR CO.
  20. Remove the solenoid body filter assembly by pulling it straight up from the alignment tabs. Discard the filter.
  21. Remove the bolts, the TR sensor detent spring and the main control valve body.

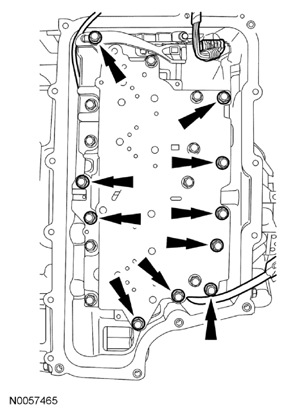

    Fig 20: Locating TR Sensor Detent Spring And Main Control Valve Body Bolts
    G07931135Courtesy of FORD MOTOR CO.
  22. Clamp a pair of locking pliers on the head of the, TR sensor retaining pin.

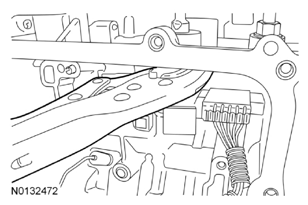

    Fig 21: Identifying Locking Pliers On Head Of TR Sensor Retaining Pin
    G07931136Courtesy of FORD MOTOR CO.
  23. Clamp a second pair of locking pliers on the first pair of locking pliers.

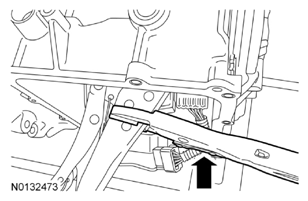

    Fig 22: Identifying Pairs Of Locking Pliers
    G07931137Courtesy of FORD MOTOR CO.
    24. NOTE: Put a block of wood on the transaxle case before prying the TR sensor retaining pin out. Failure to protect the sealing surface of the transaxle case will result in transaxle case damage.

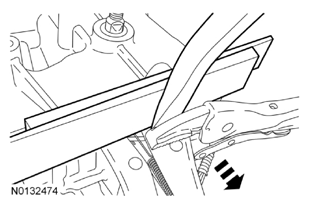

    Fig 23: Removing TR Sensor Retaining Pin Out Of Transaxle Case
    G07931138Courtesy of FORD MOTOR CO.
  24. Pry the TR sensor retaining pin out of the transaxle case.
    25. NOTE: TR sensor removed for clarity.
    Fig 24: Locating Park Pawl Actuator Rod
    G07931139Courtesy of FORD MOTOR CO.
  25. Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment by keeping the end of the park pawl actuator rod behind the machined valve body mating surface of the transaxle case. If the park pawl actuator rod becomes disengaged from the park pawl and the abutment, transaxle removal and disassembly is required to reinstall the actuator rod.
    26. NOTE: Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment or the park pawl will not lock the output shaft and transaxle removal and disassembly will be required to reinstall the actuator rod.
  26. Remove the TR sensor.
    1. Slide the TR sensor down until the manual shaft is out of the transaxle case.
    2. Rotate the TR sensor detent plate counterclockwise, as viewed from below, until the plate rests against the transaxle case. Remove the park pawl actuating rod from the TR sensor and remove the TR sensor.

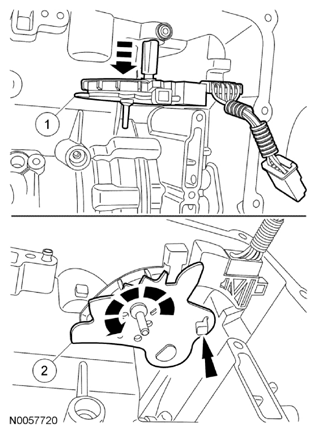

      Fig 25: Rotating TR Sensor Detent Plate
      G07931140Courtesy of FORD MOTOR CO.
