Engine Support Insulators: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

RH engine support insulator

  1. Install the RH engine support insulator.
  2. NOTE: Failure to replace the engine support insulator studs may result in engine support insulator damage.

    Install the 2 new engine support insulator studs for the RH engine support insulator.

    • Tighten to 80 Nm (59 lb-ft).

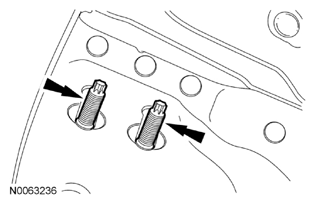

      Fig 1: Locating Engine Support Insulator Studs
      G08593275Courtesy of FORD MOTOR CO.

    LH engine support insulator

  3. Install the LH engine support insulator.

    Both engine support insulators

  4. NOTE: Failure to replace the engine support insulator cross bolts may result in engine support insulator damage.
    NOTE: Only use hand tools when installing the engine support insulator cross bolts or damage to the engine support insulator cross bolts may occur.

    Position the LH or RH engine support insulator and loosely install the 2 new engine support insulator cross bolts.

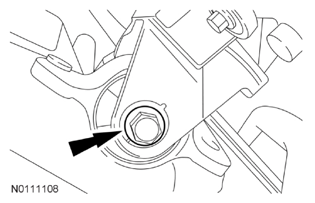

    Fig 2: Locating Engine Support Insulator Cross Bolts
    G08593276Courtesy of FORD MOTOR CO.
  5. Lower the engine onto the vehicle frame.
  6. Tighten the 2 engine support insulator cross bolts.
    • Tighten to 350 Nm (258 lb-ft).
  7. Raise the Floor Crane as needed to get the required lift to equalize the engine support insulators.
  8. Lower the engine onto the vehicle frame.

    RH engine support insulator

  9. NOTE: Failure to replace the engine support insulator nuts may result in engine support insulator damage.
    NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

    Install the 4 new RH engine support insulator nuts.

    • Tighten the RH engine support insulator nuts to 115 Nm (85 lb-ft).

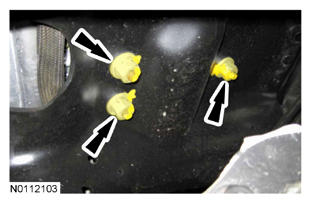

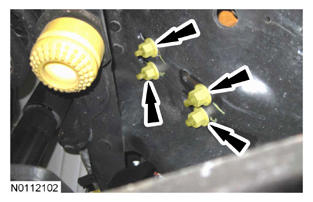

      G08593277

    LH engine support insulator

  10. NOTE: Failure to replace the engine support insulator nuts may result in engine support insulator damage.
    NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

    Install the 3 new LH engine support insulator nuts.

    • Tighten the LH engine support insulator nuts to 200 Nm (148 lb-ft).
      G08593278

      Both engine support insulators

  11. Install a new engine oil filter.
  12. Connect the fuel line retainer to the bracket on the left side of the transmission.

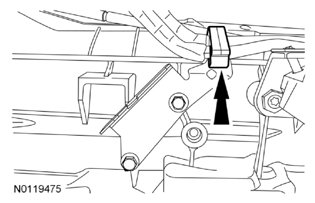

    Fig 3: Locating Fuel Line Retainer
    G08593279Courtesy of FORD MOTOR CO.
  13. Connect the 2 fuel lines to the bracket on the transmission bellhousing.

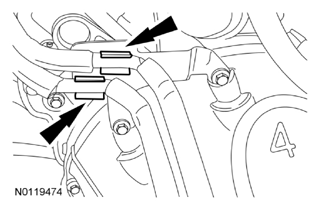

    Fig 4: Locating Transmission Bellhousing
    G08593280Courtesy of FORD MOTOR CO.
  14. Position the transmission cooler tube bracket onto the stud and install the nut.
    • Tighten to 9 Nm (80 lb-in).

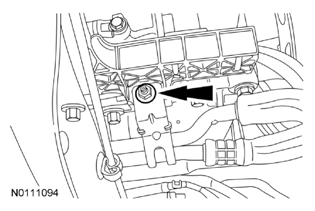

      Fig 5: Locating Transmission Cooler Tube Bracket Nut
      G08593281Courtesy of FORD MOTOR CO.
  15. If necessary, install 2 new transmission support insulator studs.
    • Tighten to 75 Nm (55 lb-ft).
  16. NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage.
    NOTE: Only use hand tools when installing the transmission support insulator nuts or damage to the transmission support insulator may occur.

    Install the 2 new transmission support insulator nuts.

    • Tighten to 115 Nm (85 lb-ft).

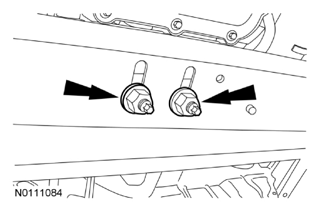

      Fig 6: Locating Transmission Support Insulator Nuts
      G08593282Courtesy of FORD MOTOR CO.
  17. Install the upper cooling fan shroud. For additional information, refer to ENGINE COOLING - DIESEL ENGINES .
  18. Install the transmission oil level indicator tube. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - TORQSHIFT 6 .
  19. Install the engine oil level indicator tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE .
  20. Install the RH turbo charger inlet pipe. For additional information, refer to EXHAUST SYSTEM .
  21. Install the crankcase vent oil separator. For additional information, refer to ENGINE EMISSION CONTROL .
  22. Install the Exhaust Gas Recirculation (EGR) cooler. For additional information, refer to ENGINE EMISSION CONTROL .
  23. Install the turbocharger. For additional information, refer to FUEL CHARGING AND CONTROLS - TURBOCHARGER .
