Evaporator Outlet Line: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

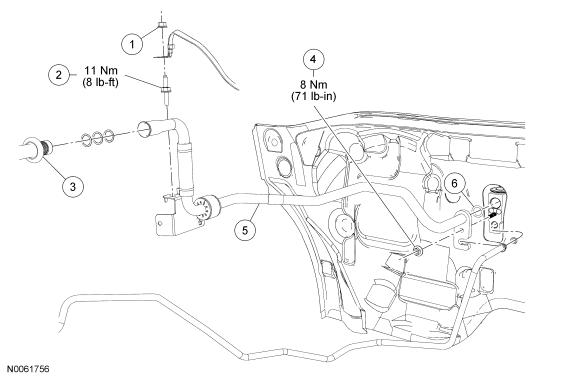

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Ground strap nut |
| 2 | N806925 | Evaporator outlet line bracket stud bolt |
| 3 | - | Evaporator outlet line spring lock coupling (part of 19835) |
| 4 | W707142 | Thermostatic expansion valve (TXV) fitting nut |
| 5 | 19835 | Evaporator outlet line |
| 6 | 19E889 | O-ring seal (5 required) |
