Home >> Lincoln >> 2012 >> MKX AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System And Stability Control >> Removal And Installation >> Wheel Speed Sensor - Front >> Notes

Wheel Speed Sensor - Front: Notes

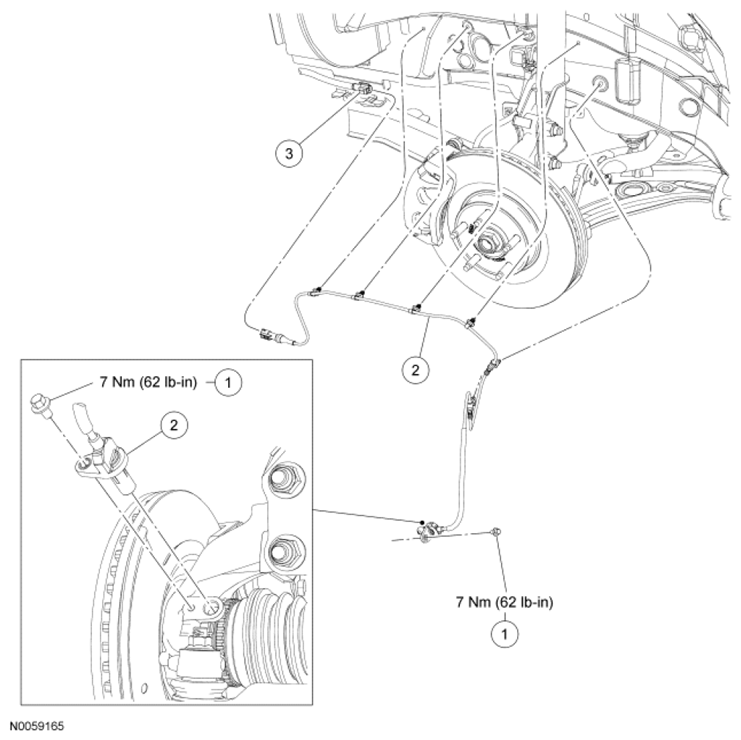

Fig 1: Exploded View Of Wheel Speed Sensor Components With Torque Specifications - Front
G06500839Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500010 Wheel speed sensor bolt
2 2C204 RH/2C205 LH Wheel speed sensor
3 - Wheel speed sensor electrical connector (part of 14290)
