Seat Control Switch Without Power Liftgate

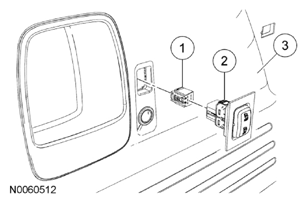

Fig 1: Identifying Rear Seat Control Switch Components - Seat Control Switch Without Power Liftgate
G07934775Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connector (part of 14A005)
2 14C715 Seat control switch
3 - Quarter trim panel
