Backup Transceiver

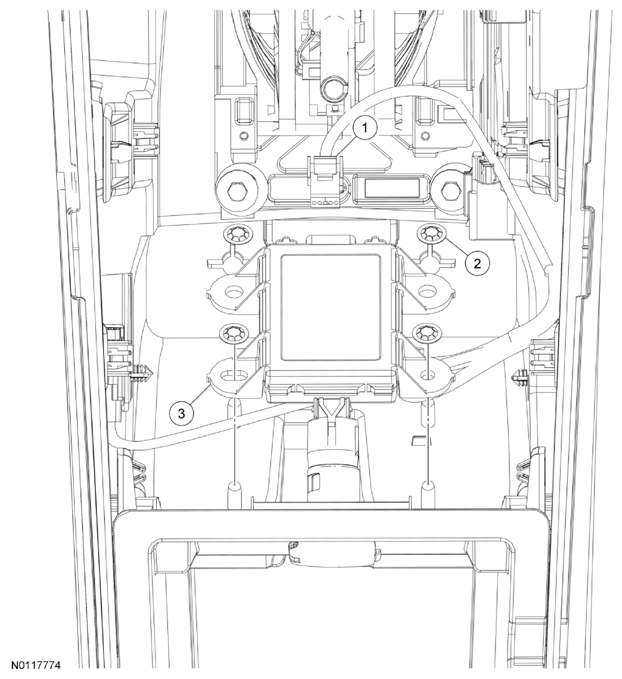

Fig 1: Identifying Backup Transceiver Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Backup transceiver electrical connector (part of 14B079)
2	045A06	Push nut round (4 required)
3	15607	Backup transceiver

Remove the floor console selector trim panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the power point. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
For Edge only, remove the media hub. For additional information, refer to INFORMATION AND ENTERTAINMENT SYSTEMS .
