Steering Column Control Module (SCCM): Notes

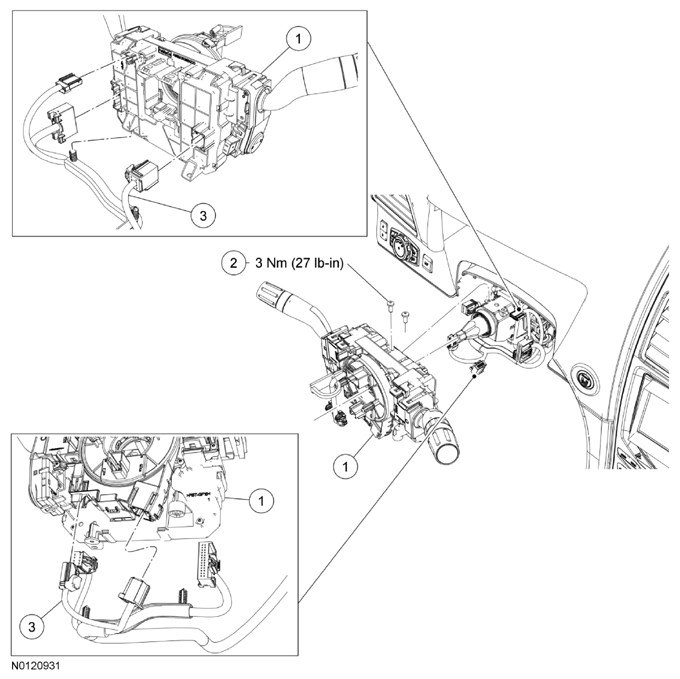

Fig 1: Steering Column Control Module Replacement Components With Torque Specifications
G07929329Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3F791 Steering Column Control Module (SCCM)
2 W715057 SCCM screw (2 required)
3 14401 Wire harness
