Power Steering Pump to Steering Gear Pressure Line: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

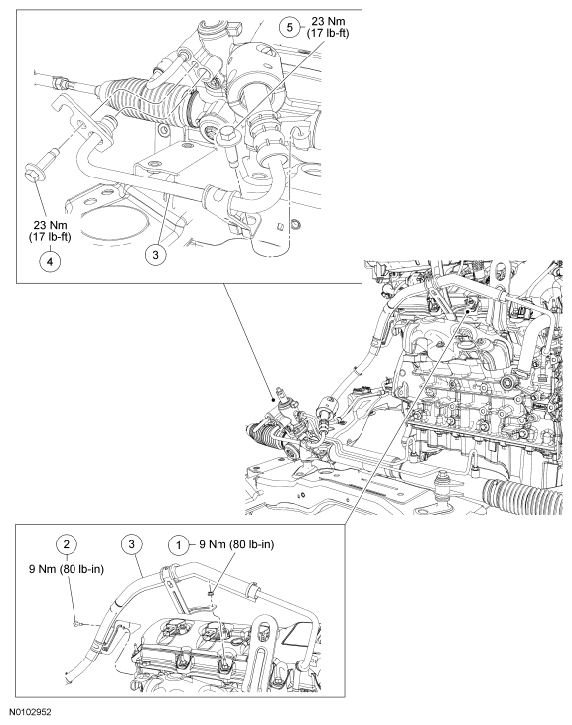

Fig 1: Power Steering Pump To Steering Gear Pressure Line Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W520100 | Pressure line bracket-to-valve cover stud nut |
| 2 | W506413 | Pressure line bracket-to-rear engine bolt |
| 3 | 3A719 | Pressure line |
| 4 | W712679 | Power steering line clamp plate bolt |
| 5 | W712679 | Pressure line bracket-to-steering gear bolt |
