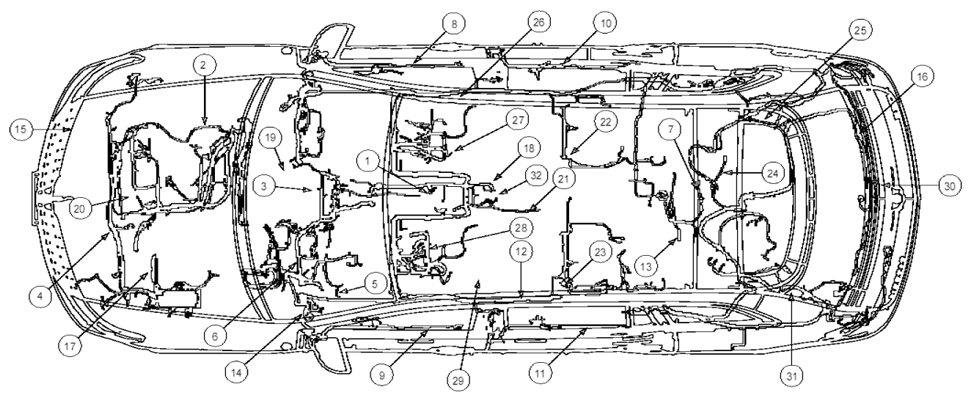

| 1 |
7G076 |
Wiring harness - Transmission shift control indicator |
| 2 |
12C508 |
Wiring harness - Engine control sensor and fuel charge |
| 3 |
13C105 |
Wiring harness - Auto high beam controller |
| 4 |
14290 |
Wiring harness - Dash panel to headlamp junction |
| 5 |
14334 |
Wiring harness - Interior lamps |
| 6 |
14401 |
Wiring harness - Main |
| 7 |
14407 |
Wiring harness - Fuel tank gauge sender |
| 8 |
14630 |
Wiring harness - Window regulator, right front door |
| 9 |
14631 |
Wiring harness - Window regulator, left front door |
| 10 |
14632 |
Wiring harness - Window regulator, right rear door |
| 11 |
14633 |
Wiring harness - Window regulator, left rear door |
| 112 |
14A005 |
Wiring harness - Body main |
| 13 |
14A107 |
Wiring harness - Rear axle control jumper |
| 12 |
14B060 |
Wiring harness - Starter motor relay and battery ground |
| 13 |
14B079 |
Wiring harness - Console panel |
| 14 |
14A320 |
Wiring harness - Headlamp dimmer switch jumper |
| 15 |
14A411 |
Wiring harness - Main jumper |
| 16 |
14A583 |
Wiring harness - Tailgate warning switch |
| 17 |
14B060 |
Wiring harness - Starter motor relay and battery ground |
| 18 |
14B079 |
Wiring harness - Console panel |
| 19 |
14B324 |
Wiring harness - PTC heater |
| 20 |
14B485 |
Wiring harness - Temperature sensor jumper |
| 21 |
14B560 |
Wiring harness - Console panel jumper |
| 22 |
14B686 |
Wiring harness - Passenger 2nd row seat |
| 23 |
14B687 |
Wiring harness - Driver 2nd row seat |
| 24 |
14B719 |
Wiring harness - Seat back control |
| 25 |
14B720 |
Wiring harness - Seat back control extension |
| 26 |
14C687 |
Wiring harness - Passenger power track airbag jumper |
| 27 |
14D230 |
Wiring harness - Passenger cushion |
| 28 |
14D231 |
Wiring harness - Driver cushion |
| 29 |
14D232 |
Wiring harness - Seat back harness |
| 30 |
14N139 |
Wiring harness - Backup alarm jumper |
| 31 |
19949 |
Wiring harness - Air conditioner blower motor feed |
| 32 |
19C757 |
Wiring harness - Air conditioner temperature control box |
