Knock Sensor (KS) - 3.7L: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Specialty Green Engine Coolant VC-10-A (US); CVC-10-A (Canada)	WSS-M97B55-A

NOTE: LH cylinder head removed from art for clarity.

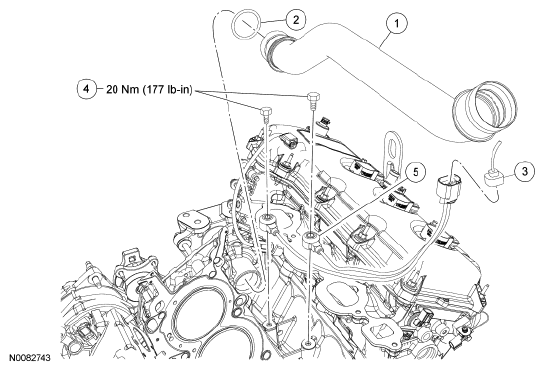

Fig 1: Exploded View Of Knock Sensor (KS) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9N271	Coolant tube
2	8565	O-ring seal
3	14A464	Knock Sensor (KS) electrical connector
4	W704749	KS bolts
5	12A699	KS
