Crankshaft Position (CKP) Sensor: Notes

SPECIAL TOOLS

Courtesy of FORD MOTOR CO.

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

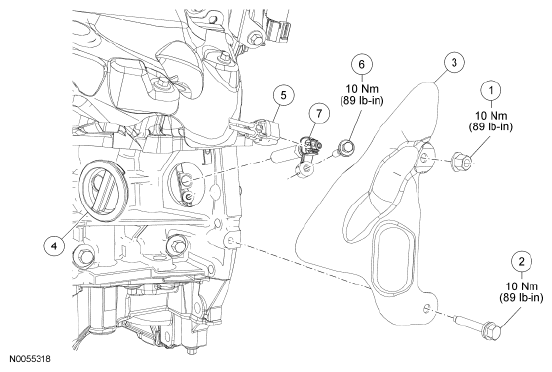

Fig 1: Exploded View Of Crankshaft Position Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701542	Heat shield nut
2	W701669	Heat shield bolt
3	6K342	Heat shield
4	6C070	Rubber grommet cover
5	14A464	Crankshaft Position (CKP) sensor electrical connector
6	6D327	CKP sensor bolt
7	6C315	CKP sensor
