Camshaft Position (CMP) Sensor - 3.7L: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

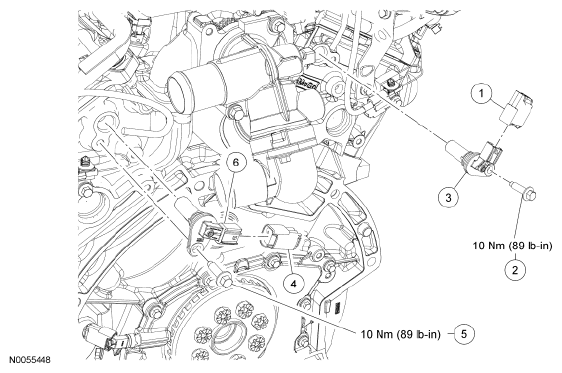

Fig 1: Camshaft Position (CMP) Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	RH Camshaft Position (CMP) sensor electrical connector
2	W503279	RH CMP sensor bolt
3	6B288	RH CMP sensor
4	14A464	LH CMP sensor electrical connector
5	W503279	LH CMP sensor bolt
6	6B288	LH CMP sensor
