Camshaft Position (CMP) Sensor - 3.5L GTDI: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil XO-5W30-QSP (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil CXO-5W30-LSP12 (Canada); or equivalent	WSS-M2C929-A

NOTE: Lower radiator hose removed for clarity.

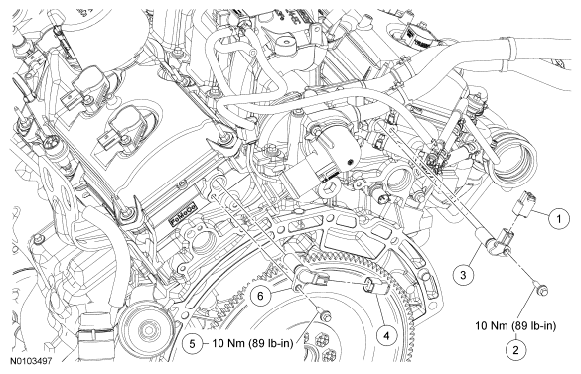

Fig 1: Camshaft Position (CMP) Sensor Replacement Components - 3.5L GTDI With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	RH Camshaft Position (CMP) sensor electrical connector
2	W503275	RH CMP sensor bolt
3	6B288	RH CMP sensor
4	14A464	LH CMP sensor electrical connector
5	W503275	LH CMP sensor bolt
6	6B288	LH CMP sensor
