3.5L GTDI Muffler and Tailpipe Assembly

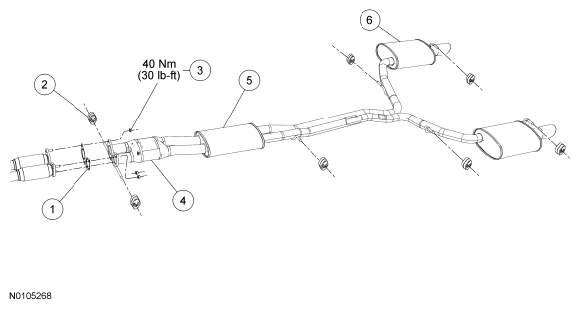

Fig 1: Exhaust System Replacement Components With Torque Specifications - 3.5L GTDI Muffler And Tailpipe Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 9450 | Gasket (2 required) |
| 2 | 5F262 | Muffler and tailpipe isolator (7 required) |
| 3 | W714265 | LH and RH exhaust flexible pipes-to-underbody catalytic converter nut (4 required) |
| 4 | - | Underbody catalytic converter (part of 5E292) |
| 5 | - | Resonator (part of 5E292) |
| 6 | - | Muffler (part of 5E292) (2 required) |
- Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
