C-CM Bracket: Notes

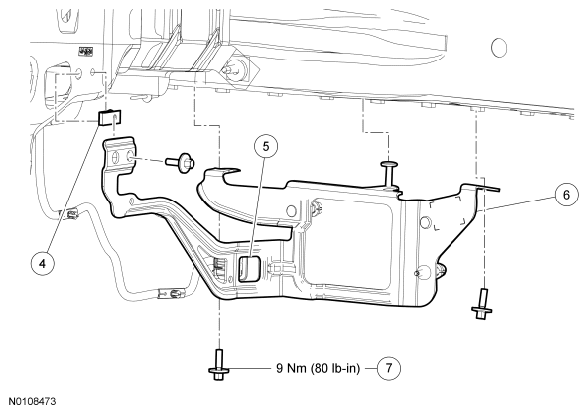

Fig 1: C-CM Bracket & U-Nut With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	W520812	Cruise-Control Module (C-CM) bracket U-nut
5	-	C-CM electrical connector (part of 14290)
6	9C736	C-CM bracket
7	W710879	C-CM bracket bolts (3 required)
