Selector Lever Knob: Removal

  1. Using 2 flat-head screwdrivers, gently pry the lower selector lever knob bezel at the front and back of the selector lever knob out to release it from the retaining tabs and slide the lower selector lever knob bezel downward.

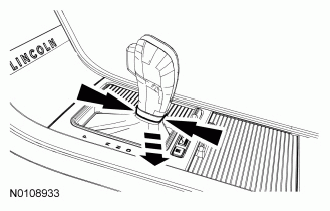

    Fig 1: Sliding Lower Selector Lever Knob Bezel
    G06756756Courtesy of FORD MOTOR CO.
  2. Remove the 2 screws and remove the selector lever knob.
    Fig 2: Locating Selector Lever Knob And Screws
    G06756757Courtesy of FORD MOTOR CO.
