Selector Lever Knob: Installation

  1. Position the selector lever knob on the selector lever and install the 2 screws.

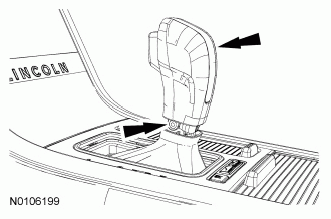

    Fig 1: Locating Selector Lever Knob And Screws
    G06756757Courtesy of FORD MOTOR CO.
  2. Slide the lower selector lever bezel up and snap into place.

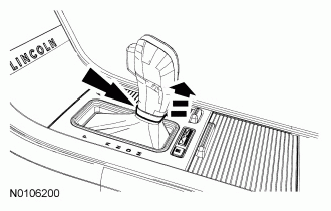

    Fig 2: Sliding Lower Selector Lever Bezel Up
    G06756759Courtesy of FORD MOTOR CO.
