Selector Lever Bezel: Removal

Remove the selector lever knob. For additional information, refer to SELECTOR LEVER KNOB .
Remove the center console trim.

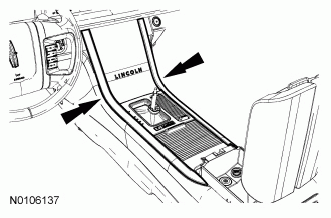

Fig 1: Locating Center Console Trim
Courtesy of FORD MOTOR CO.
Remove the cup holder lid trim panel.

Fig 2: Locating Cup Holder Lid Trim Panel
Courtesy of FORD MOTOR CO.
Remove the cup holder retaining screws and position the cupholder out of the center console to access the electrical connector.

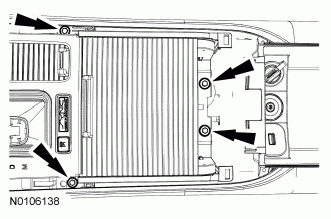

Fig 3: Locating Cup Holder Retaining Screws
Courtesy of FORD MOTOR CO.
Disconnect the cupholder electrical connector and remove the cupholder.

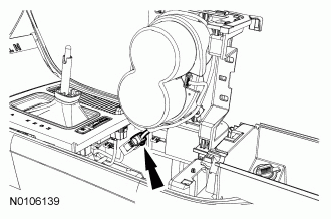

Fig 4: Locating Cup Holder Electrical Connector
Courtesy of FORD MOTOR CO.
Place the selector lever in M. Slide the selector lever bezel back and lift to access the electrical connectors.

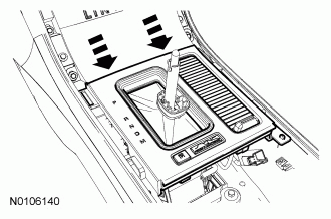

Fig 5: Sliding Selector Lever Bezel
Courtesy of FORD MOTOR CO.
Disconnect the 4 electrical connectors and remove the selector lever bezel from the center console.

Fig 6: Locating Selector Lever Bezel Electrical Connectors
Courtesy of FORD MOTOR CO.
Release the 7 tabs and remove the selector lever boot from the selector lever bezel.

Fig 7: Locating Selector Lever Boot Tabs
Courtesy of FORD MOTOR CO.
Release the 6 tabs and remove the selector lever boot bezel from the selector lever bezel.

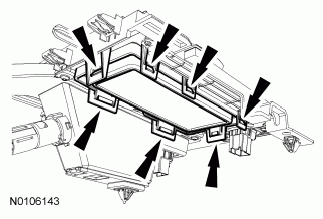

Fig 8: Locating Selector Lever Boot Bezel Tabs
Courtesy of FORD MOTOR CO.
