Selector Lever Bezel: Installation

Install the selector lever boot bezel in the selector lever bezel. Check to make sure the 6 tabs are correctly installed.

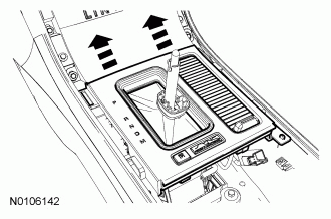

Fig 1: Locating Selector Lever Boot Bezel Tabs
Courtesy of FORD MOTOR CO.
Install the selector lever boot in the selector lever bezel. Check to make sure the 7 tabs are correctly installed.

Fig 2: Locating Selector Lever Boot Tabs
Courtesy of FORD MOTOR CO.
Connect the 4 electrical connectors and position the selector lever bezel over the selector lever, on the center console.

Fig 3: Locating Selector Lever Bezel Electrical Connectors
Courtesy of FORD MOTOR CO.
Push forward on the selector lever bezel and install it in the center console.

Fig 4: Pushing Selector Lever Bezel
Courtesy of FORD MOTOR CO.
Connect the cupholder electrical connector and position the cupholder in place.

Fig 5: Locating Cup Holder Electrical Connector
Courtesy of FORD MOTOR CO.
Position the cup holder in place and install the 4 screws.

Fig 6: Locating Cup Holder Retaining Screws
Courtesy of FORD MOTOR CO.
Position the cup holder trim cover in place and install.

Fig 7: Locating Cup Holder Lid Trim Panel
Courtesy of FORD MOTOR CO.
Position the center counsel trim in place and install.

Fig 8: Locating Center Console Trim
Courtesy of FORD MOTOR CO.
Install the selector lever knob. For additional information, refer to SELECTOR LEVER KNOB .
