Child Safety Seat Tether Anchor - LATCH: Notes
NOTE:
RH side shown in illustration, LH side similar.

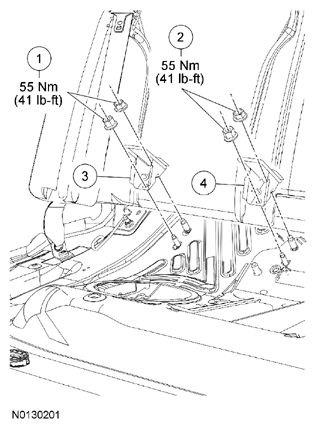

Fig 1: Child Safety Seat Tether Anchor And Related Replacement Components With Torque Specifications -- Latch
| Item | Part Number | Description |
|---|---|---|
| 1 | N808227 | RH lower anchors and tethers for children nuts |
| 2 | N808227 | Center lower anchors and tethers for children nuts |
| 3 | 61216 | Lower anchors and tethers for children (RH outboard/LH outboard) |
| 4 | 61216/61217 | Lower anchors and tethers for children (RH center/LH center) |
