Evaporative Emission (EVAP) System Components - Exploded View

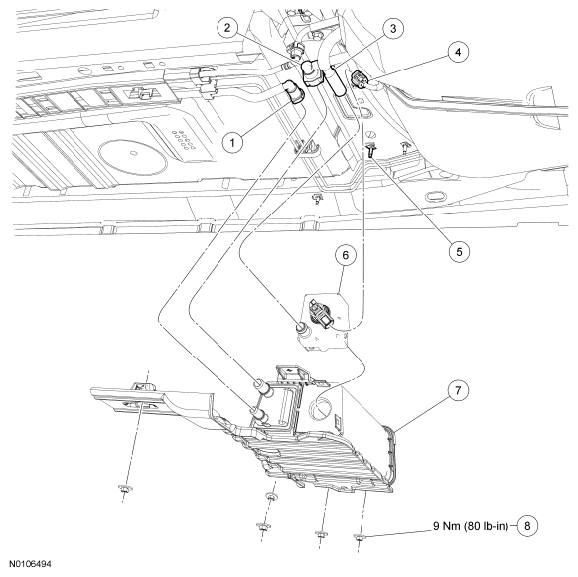

Fig 1: Exploded View Of Evaporative Emission (EVAP) System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fuel vapor tube-to-Evaporative Emission (EVAP) canister quick connect coupling (part of 9J279)
2	-	Fuel vapor tube assembly-to-EVAP canister quick connect coupling (part of 9C015)
3	-	Fresh air hose-to-dust separator
4	14A464	EVAP canister vent solenoid electrical connector
5	W711411	EVAP canister J-clip mounting stud (4 required)
6	9G676	Dust separator and EVAP canister vent solenoid assembly
7	9E857	EVAP canister
8	W711059	EVAP canister nut (5 required)

1. For additional information, refer to the appropriate procedures.
