Audio Amplifier: Notes

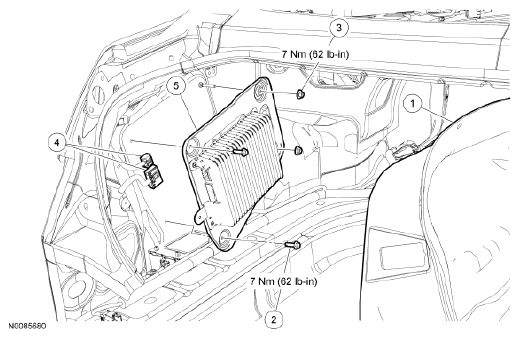

Fig 1: Exploded View Of Audio Amplifier With Torque Specifications
G06075577Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5445423 LH luggage compartment trim panel
2 W706281-S Audio amplifier bolts (2 required)
3 N621906-S Audio amplifier nuts (2 required)
4 - Audio amplifier electrical connectors (part of 14A005)
5 18B849 Audio amplifier
