Restraints Control Module (RCM): Notes

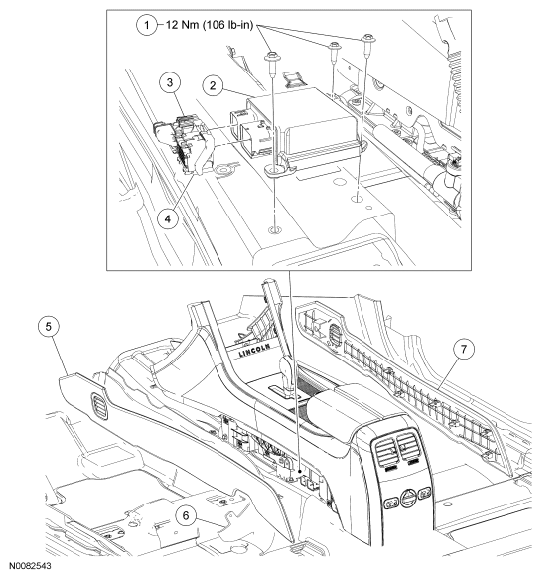

Fig 1: Restraints Control Module (RCM) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707722	Restraints Control Module (RCM) bolts (3 required)
2	14B321	RCM
3	-	Small RCM electrical connector (part of 14401)
4	-	Large RCM electrical connector (part of 14A005)
5	04608	LH floor console lower trim panel
6	-	Carpet
7	04609	RH floor console lower trim panel
