Selector Lever Knob: Removal

    NOTE: Expedition selector lever shown in the illustration, Navigator similar.

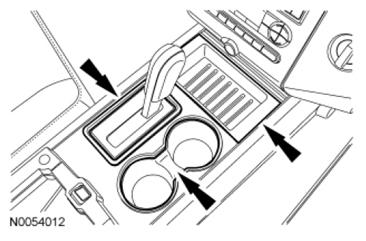

    Fig 1: Locating Selector Lever Trim Ring, Console Tray And Cup Holder Insert
    G07456439Courtesy of FORD MOTOR CO.
  1. Remove the selector lever trim ring, console tray and cup holder insert.
  2. Remove the screw and the console upper trim.

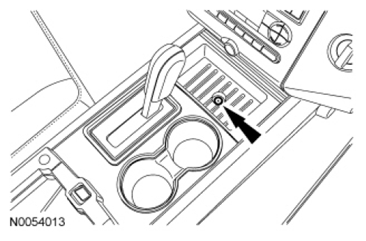

    Fig 2: Locating Console Upper Trim Screw
    G07456440Courtesy of FORD MOTOR CO.
  3. Remove and discard the RH selector lever knob cover.
    1. Start at the bottom front only.
    2. Move towards the top front and remove the cover.

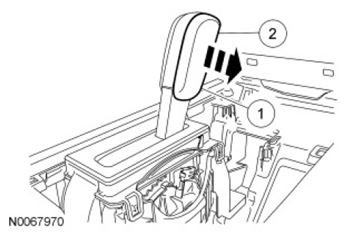

      Fig 3: Removing RH Selector Lever Knob Cover
      G07456441Courtesy of FORD MOTOR CO.
  4. Remove and discard the LH selector lever knob cover.
    1. Start at the bottom front only.
    2. Move towards the top front and remove the cover.

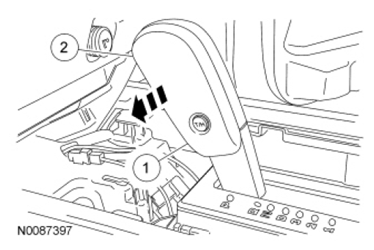

      Fig 4: Removing LH Selector Lever Knob Cover
      G07456442Courtesy of FORD MOTOR CO.
  5. Remove and discard the RH selector lever knob screw.

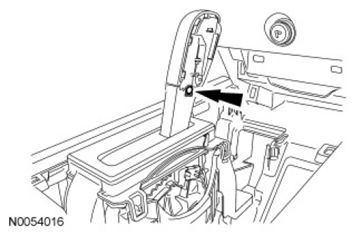

    Fig 5: Locating RH Selector Lever Knob Screw
    G07456443Courtesy of FORD MOTOR CO.
    6. NOTE: Verify the LH and RH knob body towers are present and not damaged.

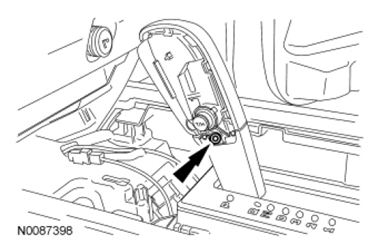

    Fig 6: Locating LH Selector Lever Knob Screw
    G07456444Courtesy of FORD MOTOR CO.
  6. Remove and discard the LH selector lever knob screw.
  7. Disconnect the tow/haul switch electrical connector and remove the selector lever knob.

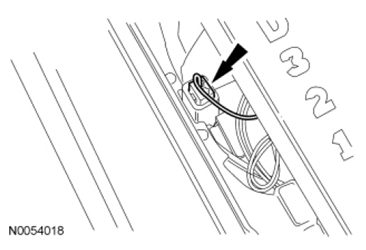

    Fig 7: Locating Tow/Haul Switch Electrical Connector
    G07456445Courtesy of FORD MOTOR CO.
