Torque Converter Hub Seal: Disassembly

  1. Remove the transaxle. For additional information, refer to TRANSAXLE  in this service information.
  2. Remove the torque converter.
    Fig 1: Locating Torque Converter
    G07786085Courtesy of FORD MOTOR CO.

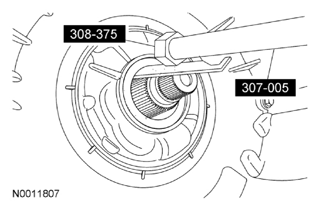

  3. Using the Input Shaft Oil Seal Remover and Slide Hammer, remove the torque converter hub seal.
    Fig 2: Removing Torque Converter Hub Seal Using The Input Shaft Oil Seal Remover And Slide Hammer
    G07786086Courtesy of FORD MOTOR CO.
