Torque Converter Hub Seal: Assembly

  1. Position the torque converter hub seal in place.
    Fig 1: Positioning Torque Converter Hub Seal In Place
    G07786087Courtesy of FORD MOTOR CO.
  2. Using the Fluid Pump Seal Installer, install the torque converter hub seal.

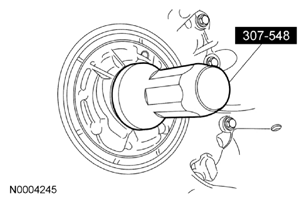

    Fig 2: Installing Torque Converter Hub Seal Using The Fluid Pump Seal Installer
    G07786088Courtesy of FORD MOTOR CO.
  3. Install the torque converter.
    Fig 3: Locating Torque Converter
    G07786089Courtesy of FORD MOTOR CO.
  4. Install the transaxle. For additional information, refer to TRANSAXLE  in this service information.
