Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the Air Cleaner (ACL) assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - (HYBRID) article.
  2. Install the Engine Support Bar and support the engine and transaxle.
    Fig 1: Supporting Engine
    G06261966Courtesy of FORD MOTOR CO.
  3. Disconnect the hood ajar electrical connector.

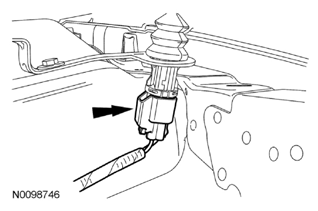

    Fig 2: Locating Hood Ajar Electrical Connector
    G07786175Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the nut and position aside the Battery Junction Box (BJB).
    • To install, tighten to 10 Nm (89 lb-in).

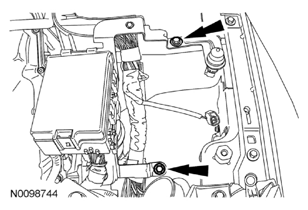

    Fig 3: Locating Battery Junction Box Mounting Bolt And Nut
    G07786176Courtesy of FORD MOTOR CO.
  5. Remove the 5 nuts and remove the transaxle support insulator and the bracket.
    • To install, tighten to 90 Nm (66 lb-ft).

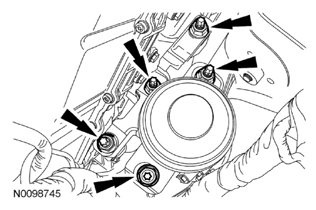

    Fig 4: Locating Transaxle Support Insulator Bracket Bolt
    G07786177Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
