Removal and Installation

NOTE: For MKZ, the traction control switch is serviced with the Front Controls Interface Module (FCIM). For additional information, refer to INFORMATION & ENTERTAINMENT SYSTEMS -- FUSION, MILAN & MKZ article.

Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL & CONSOLE -- FUSION, MILAN & MKZ article.
Press the retaining tabs and remove the traction control switch.

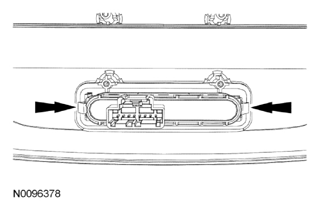

Fig 1: Locating Traction Control Switch Retaining Tabs
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
