Interior Lighting Control Module Connector - C2301

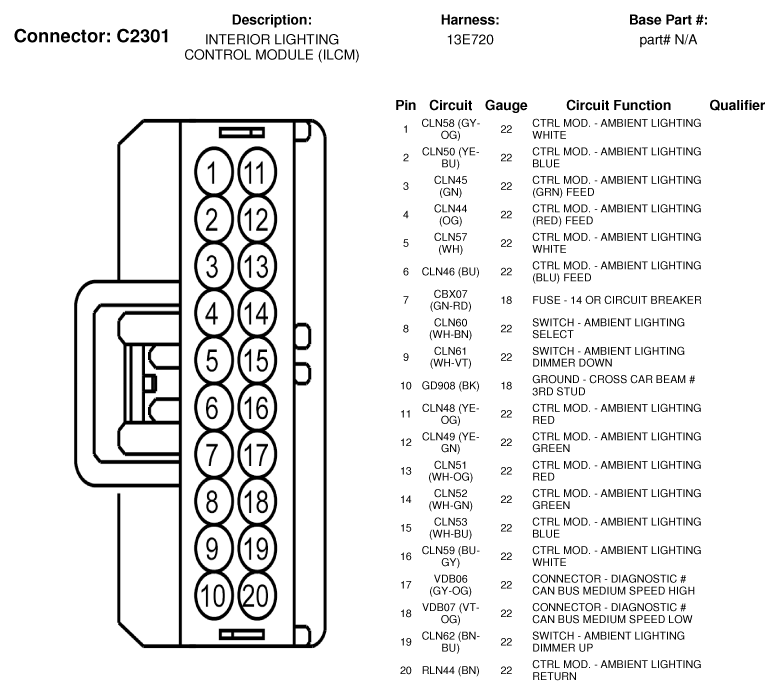

Fig 1: Interior Lighting Control Module Connector End View (C2301)

G07335801

Courtesy of FORD MOTOR CO.
