Fuel Pump Control Module Connector - C446

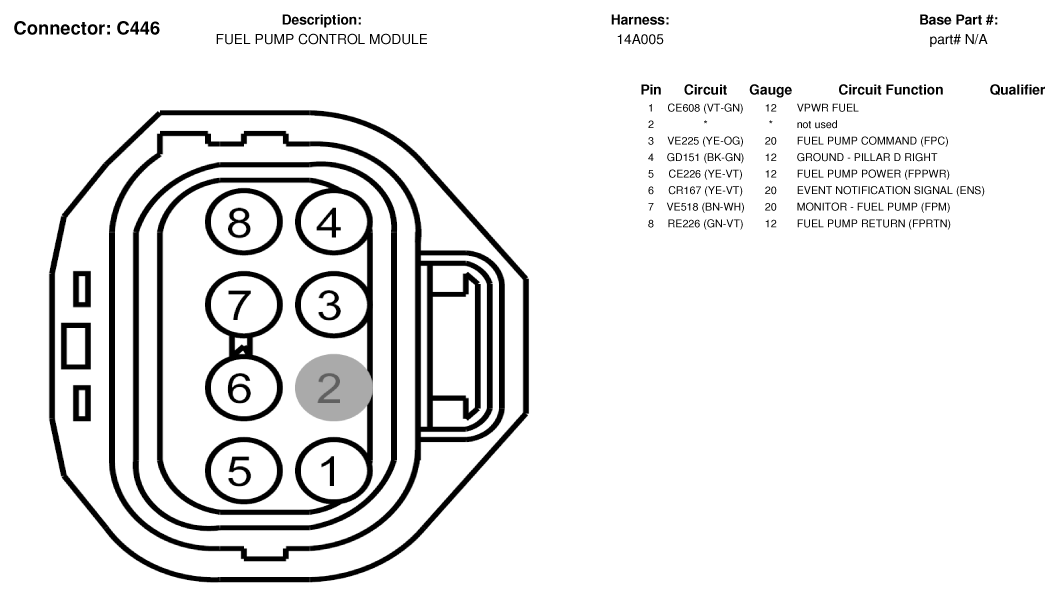

Fig 1: Fuel Pump Control Module Connector End View (C446)

G07335645

Courtesy of FORD MOTOR CO.
