Front Heated Seat Module Connector End View - C3304B

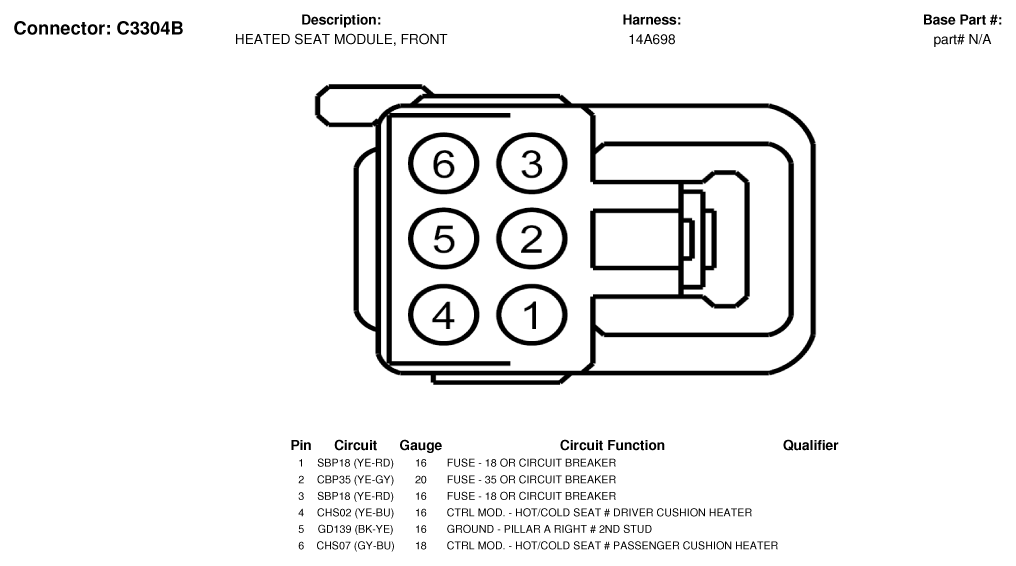

Fig 1: Front Heated Seat Module Connector End View (C3304B)

G07335870

Courtesy of FORD MOTOR CO.
