6 Speed AW21 Transmission Control Module Connector - C1533

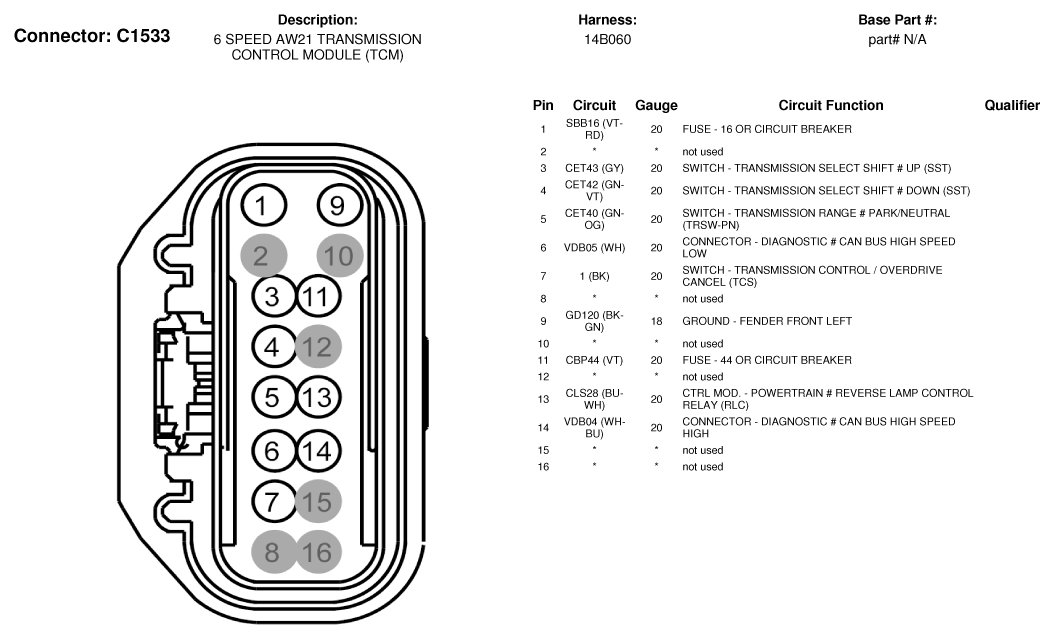

Fig 1: 6 Speed AW21 Transmission Control Module Connector End View (C1533)

G07335764

Courtesy of FORD MOTOR CO.
