Restraints Control Module Connector - C310B

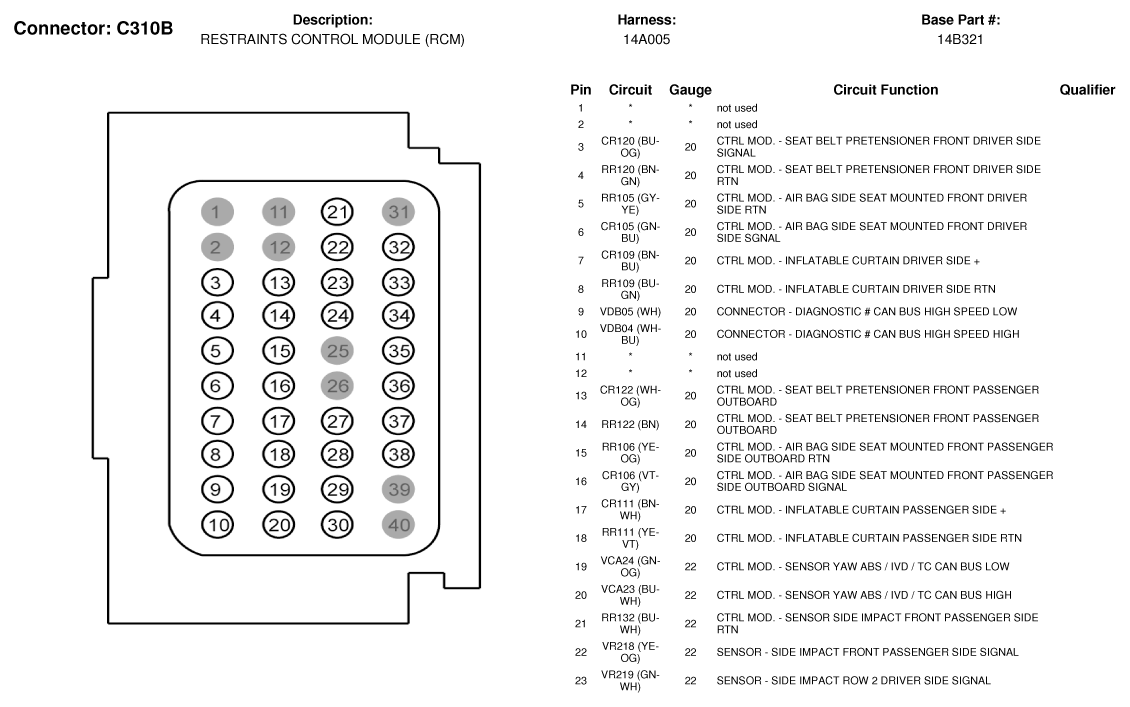

Fig 1: Restraints Control Module Connector End View (C310B) (1 Of 2)
G07335597Courtesy of FORD MOTOR CO.
Fig 2: Restraints Control Module Connector End View (C310B) (2 Of 2)
G07335598Courtesy of FORD MOTOR CO.
