Powertrain Control Module Connector End View - C175T

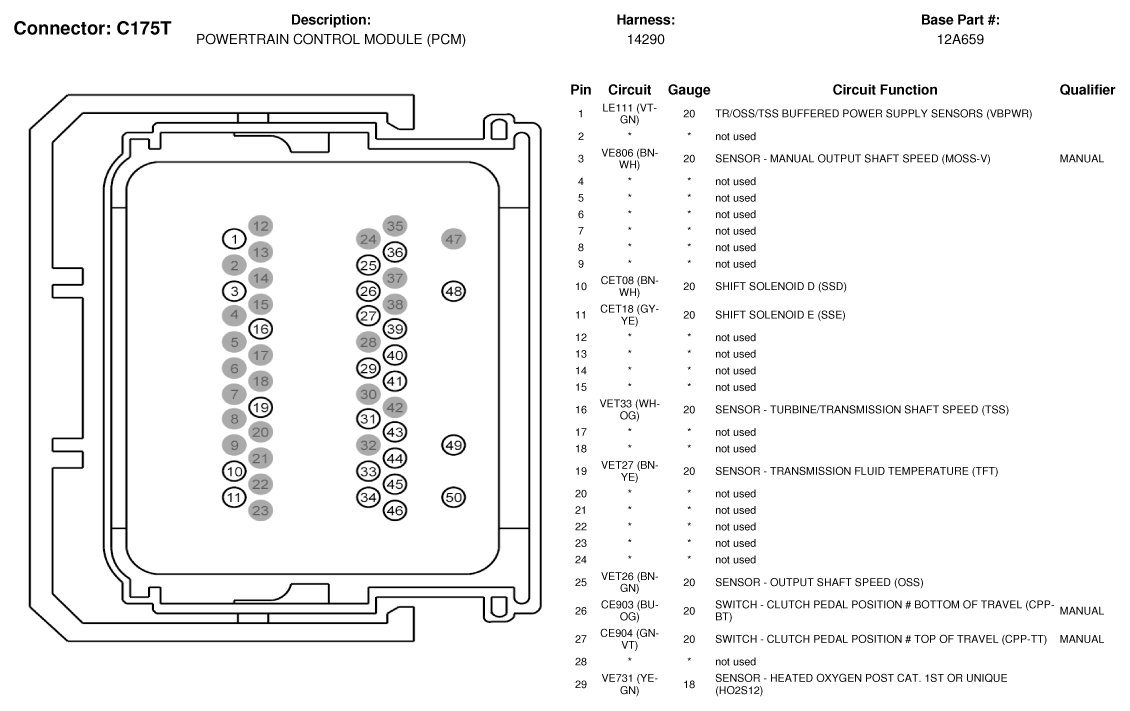

Fig 1: Powertrain Control Module Connector End View (C175T) (1 Of 2)
G07335544Courtesy of FORD MOTOR CO.

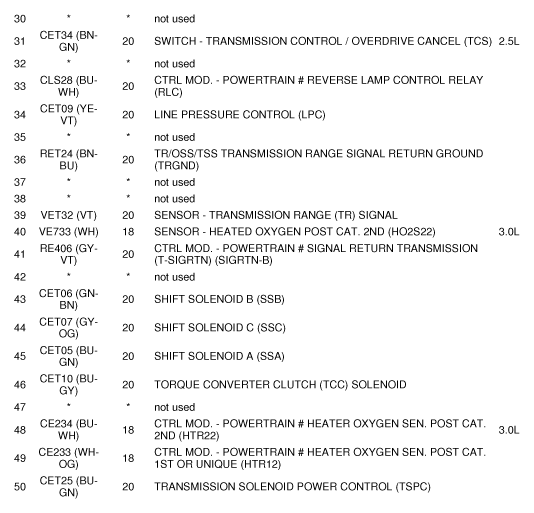

Fig 2: Powertrain Control Module Connector End View (C175T) (2 Of 2)
G07335545Courtesy of FORD MOTOR CO.
