Power Steering Control Module Connector End View - C1467B

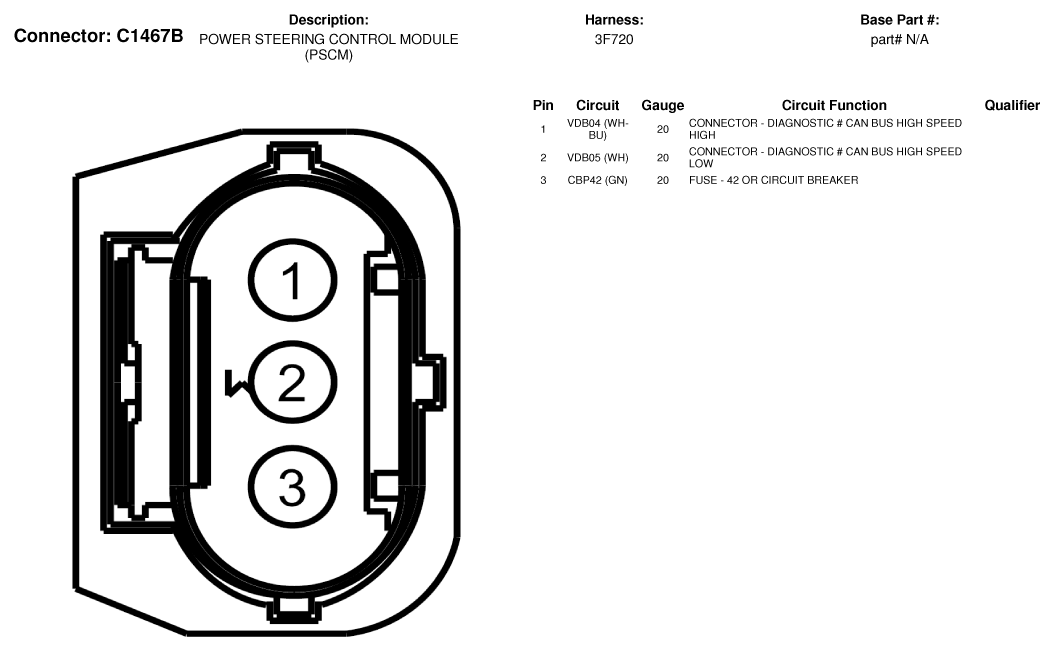

Fig 1: Power Steering Control Module Connector End View (C1467B)

G07335754

Courtesy of FORD MOTOR CO.
