Side Obstacle Detection (SOD) Module: Notes

NOTE: Rear bumper cover removed for clarity.

NOTE: Left rear quarter panel shown in the illustration, right side similar.

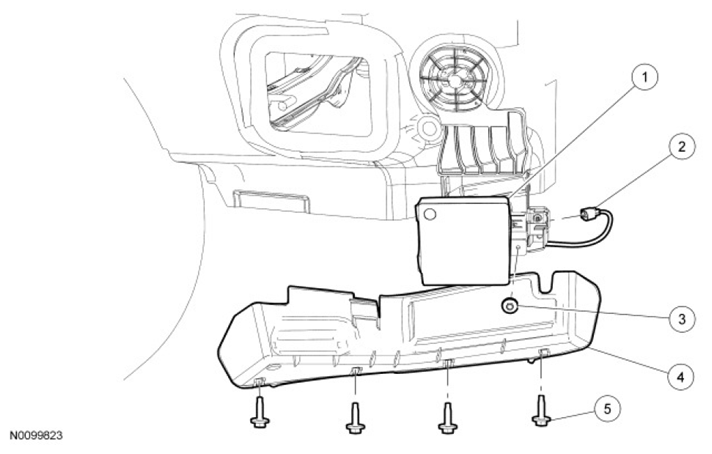

Fig 1: Exploded View Of Side Obstacle Detection (SOD) Module Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14C689	Side Obstacle Detection Control Module - Left (SOD-L)/Side Obstacle Detection Control Module - Right (SOD-R)
2	-	SOD-L/SOD-R electrical connector (part of 15K868)
3	W705796	SOD-L/SOD-R screw and washer
4	-	Lower rear bumper quarter panel splash shield
5	-	Lower rear bumper quarter panel splash shield screws
