Steering Column View 1 of 2

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

NOTE: Power tilt/telescopic column shown in illustration, manual similar.

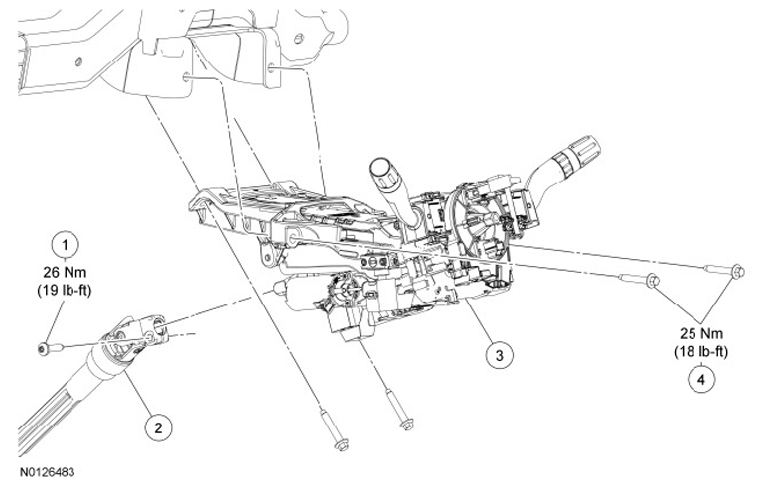

Fig 1: Exploded View Of Steering Column With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W714878	Steering column shaft-to-steering column bolt
2	3B676	Steering column shaft
3	3C529	Steering column
4	W712833	Steering column bolt (4 required)
