Generator Current Sensor Connector - C1645

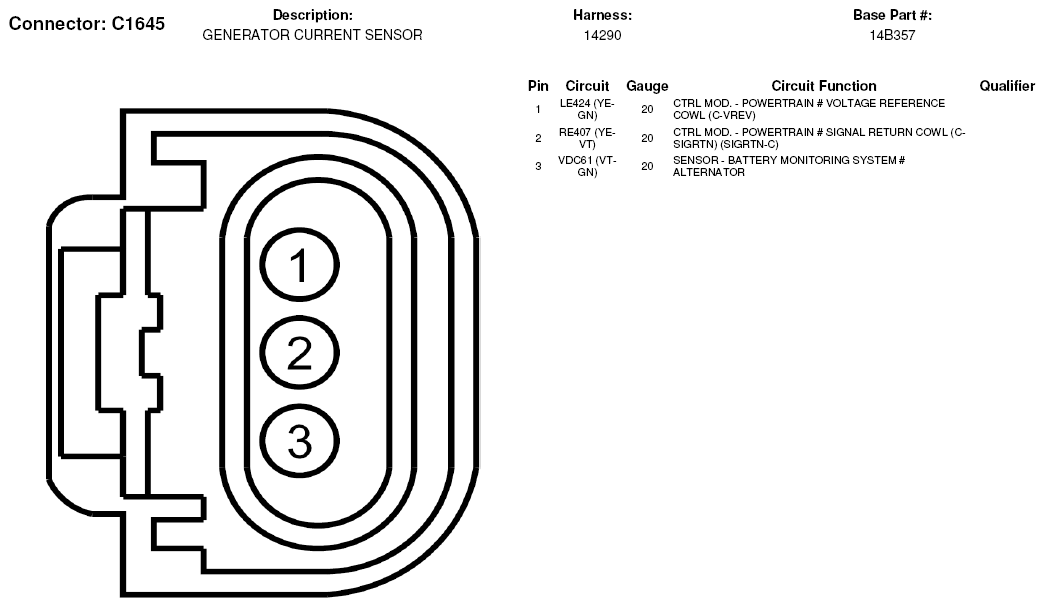

Fig 1: Generator Current Sensor Connector End View (C1645)

G07327176

Courtesy of FORD MOTOR CO.
