Automatic Transmission - Automatic Transaxle/Transmission - 6F50/6F55
>>
Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body
>>
Notes
Main Control Valve Body: Notes

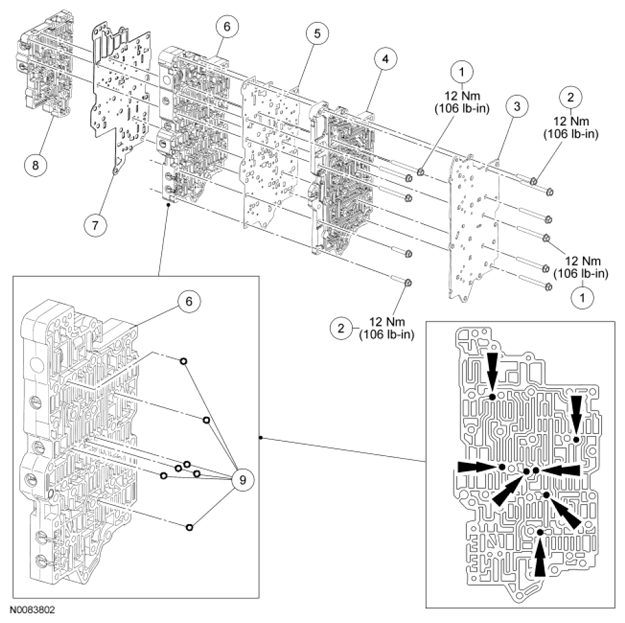

Fig 1: Exploded View Of Main Control Valve Body With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
