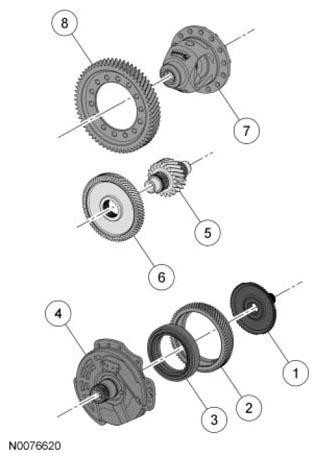

Final Drive Gearset Exploded View
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7B067 | Front planetary carrier hub |
| 2 | 7F342 | Transfer shaft drive gear |
| 3 | 7A452 | Transfer shaft drive gear bearing |
| 4 | 7F363 | Stator support assembly |
| 5 | 7H346 | Transfer shaft |
| 6 | 7H349 | Transfer gear |
| 7 | 4207 | Differential assembly |
| 8 | 7F343 | Differential ring gear |
