DATC HVAC Module Connector End View - C228C

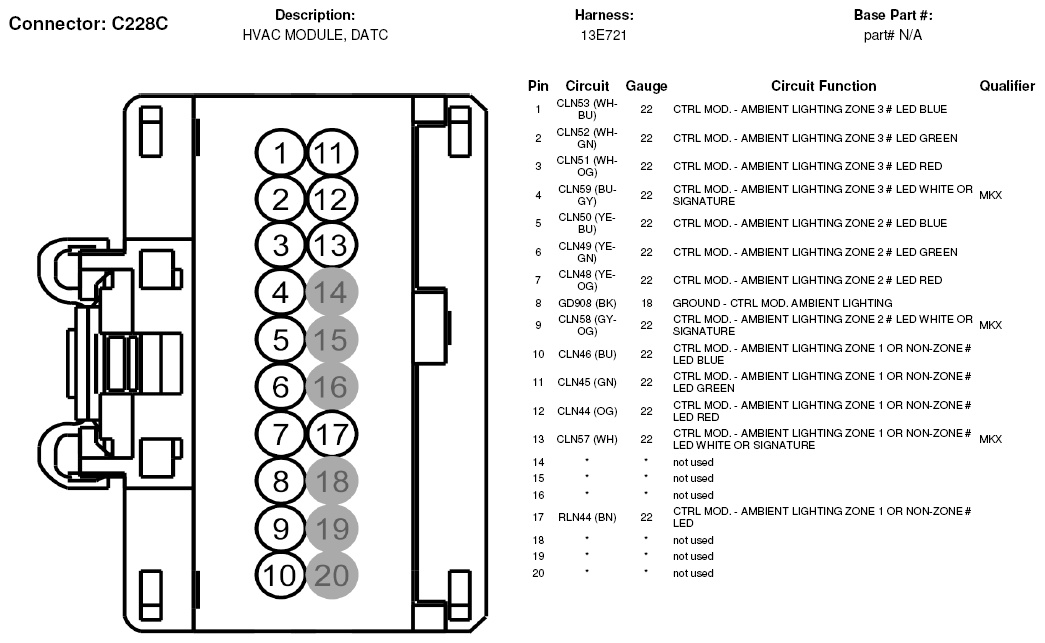

Fig 1: DATC HVAC Module Connector End View (C228C)

G07327008

Courtesy of FORD MOTOR CO.
