Steering Column Control Module Connector End View - C2414C

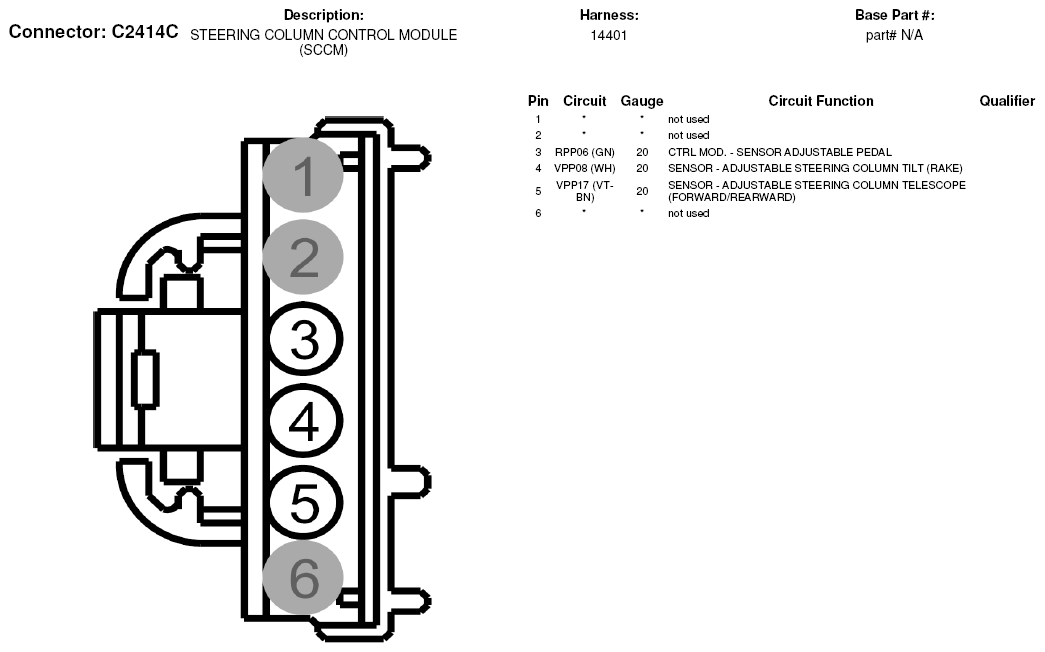

Fig 1: Steering Column Control Module Connector End View (C2414C)

G07327215

Courtesy of FORD MOTOR CO.
