DATC HVAC Module Connector End View - C228B

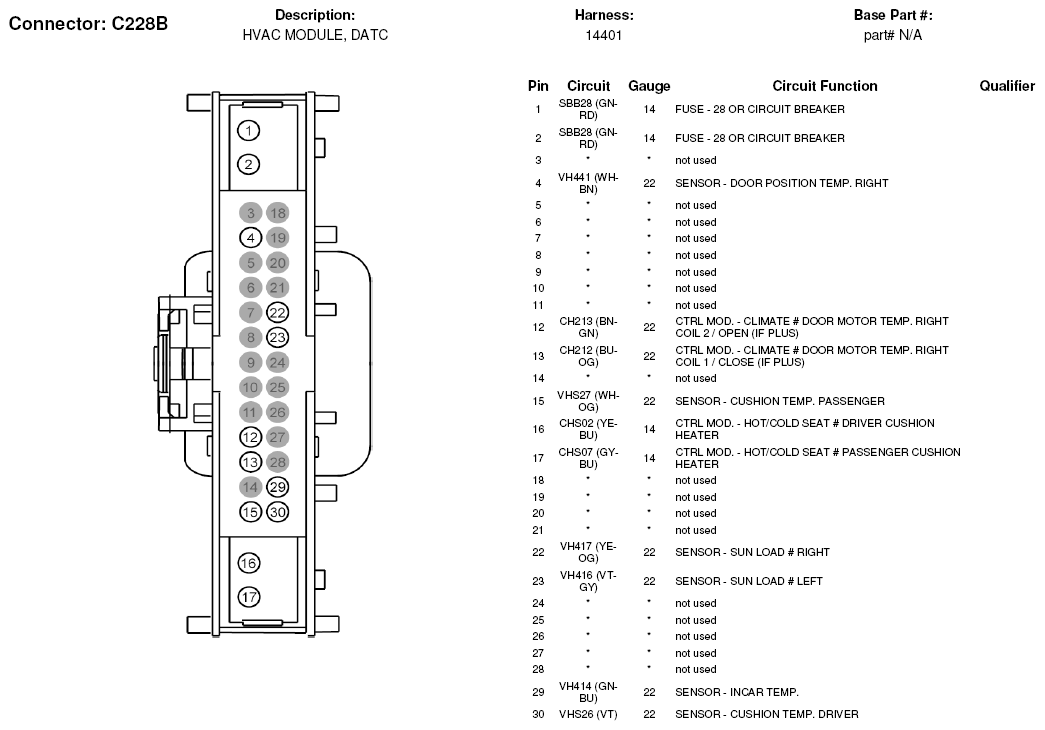

Fig 1: DATC HVAC Module Connector End View (C228B)

G07327007

Courtesy of FORD MOTOR CO.
