Steering Column Control Module Connector End View - C2414B

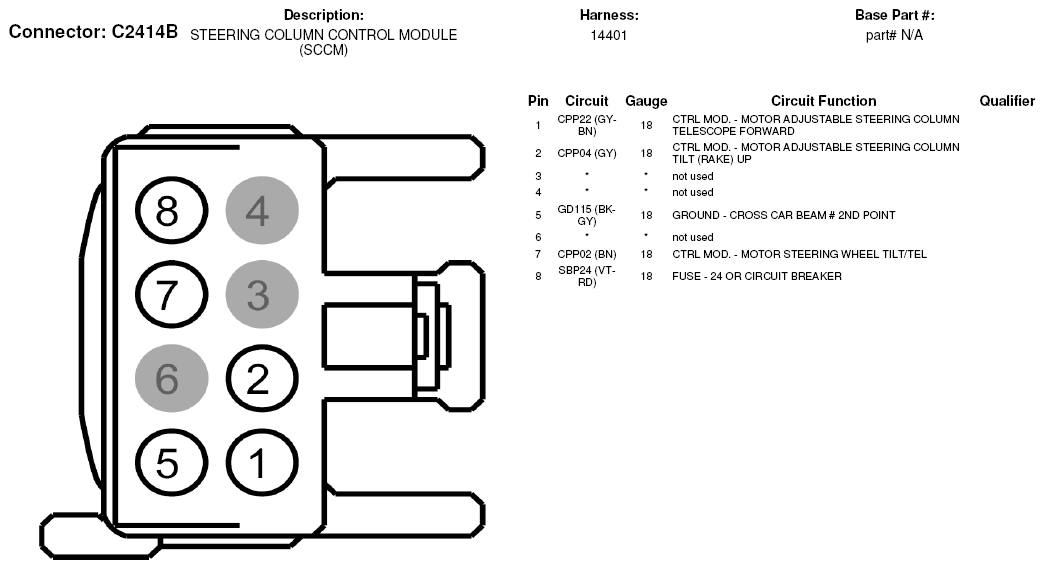

Fig 1: Steering Column Control Module Connector End View (C2414B)

G07327214

Courtesy of FORD MOTOR CO.
