Steering Column Control Module Connector End View - C2414A

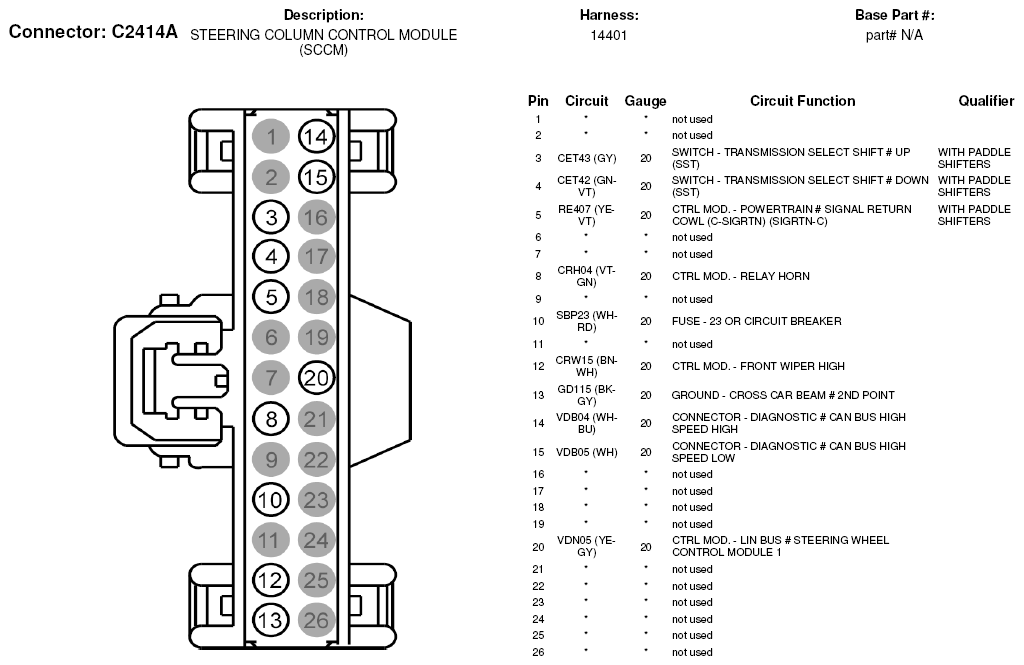

Fig 1: Steering Column Control Module Connector End View (C2414A)

G07327213

Courtesy of FORD MOTOR CO.
