Body Control Module Connector End View - C2280E

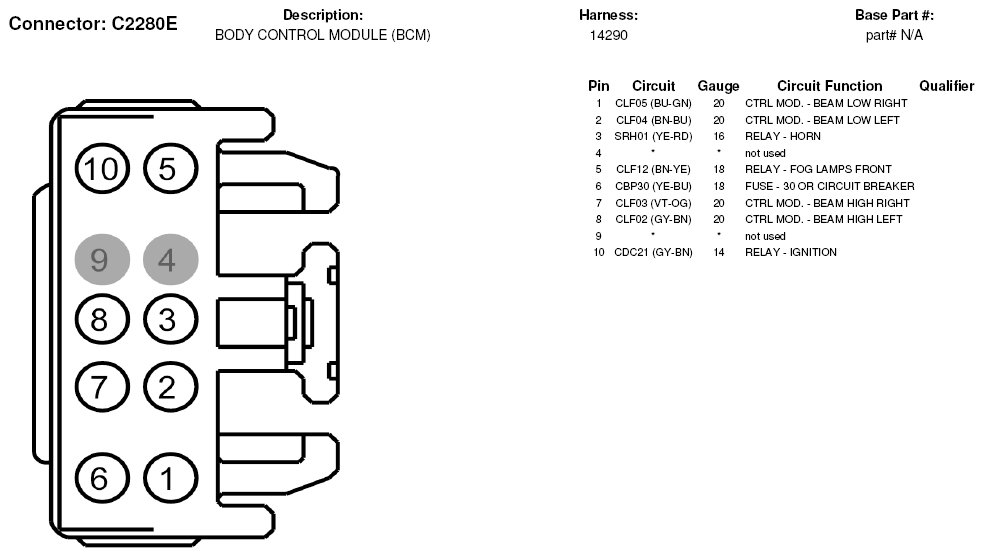

Fig 1: Body Control Module Connector End View (C2280E)

G07327200

Courtesy of FORD MOTOR CO.
