Body Control Module Connector End View - C2280B

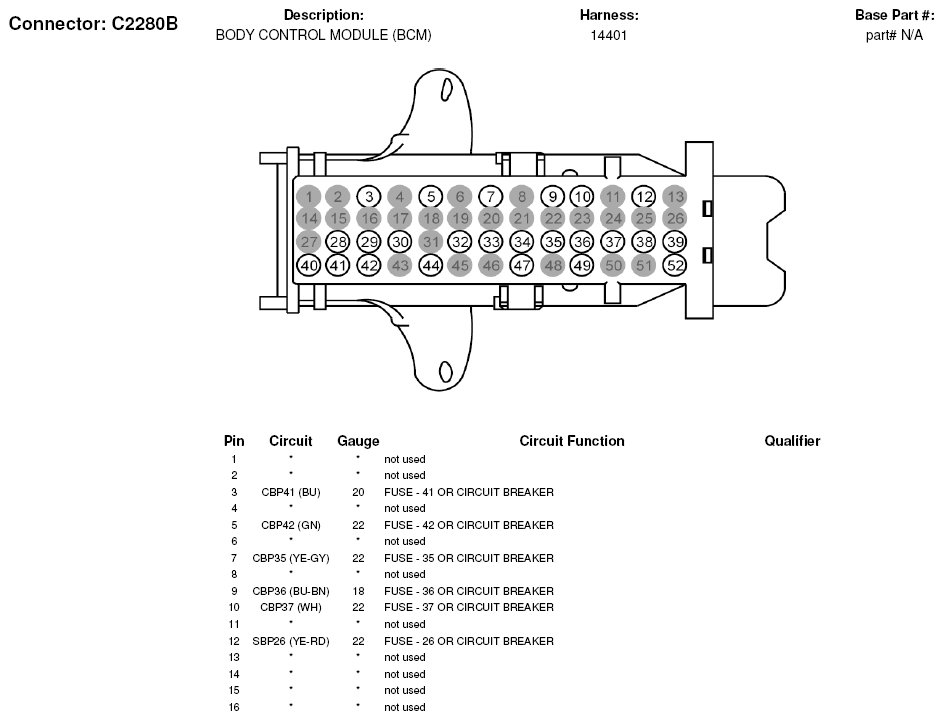

Fig 1: Body Control Module Connector End View (C2280B) (1 Of 2)
G07327196Courtesy of FORD MOTOR CO.

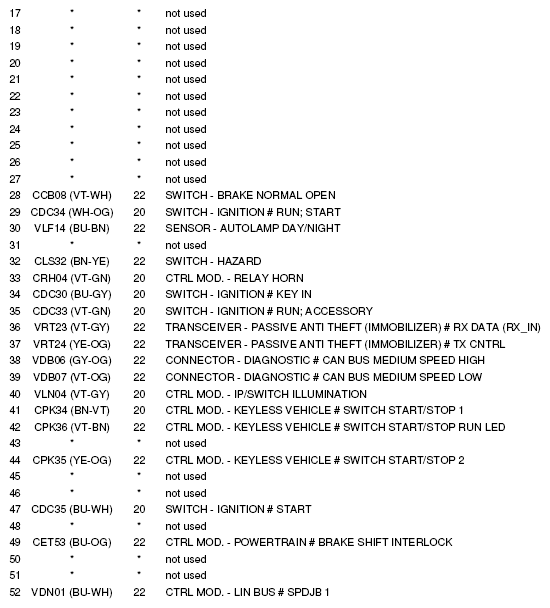

Fig 2: Body Control Module Connector End View (C2280B) (2 Of 2)
G07327197Courtesy of FORD MOTOR CO.
