Body Control Module Connector End View - C2280A

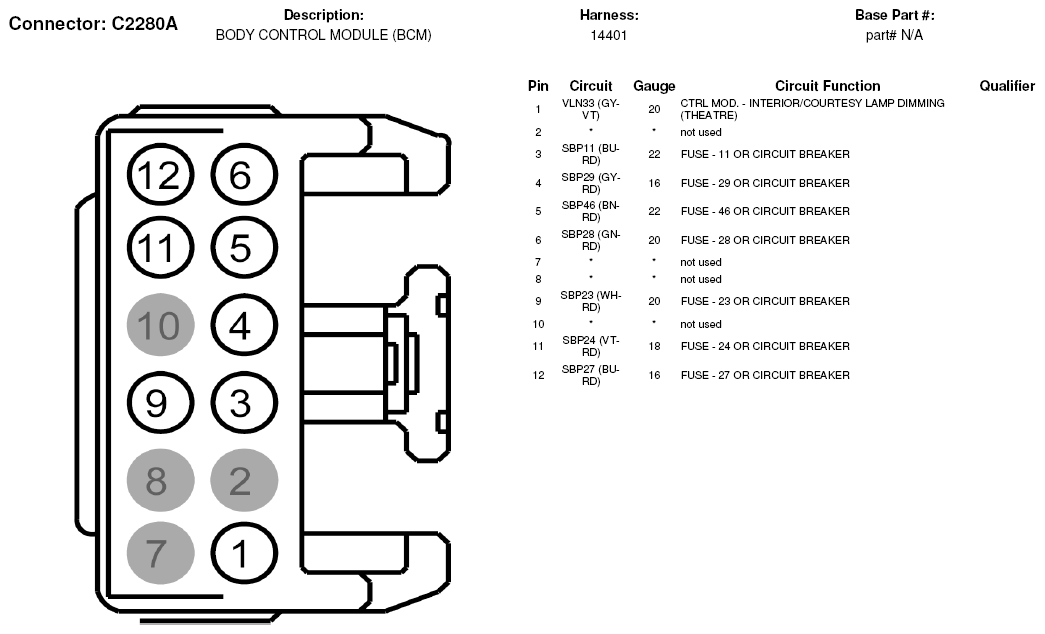

Fig 1: Body Control Module Connector End View (C2280A)

G07327195

Courtesy of FORD MOTOR CO.
