Wiper and Washer System - Exploded View, Front

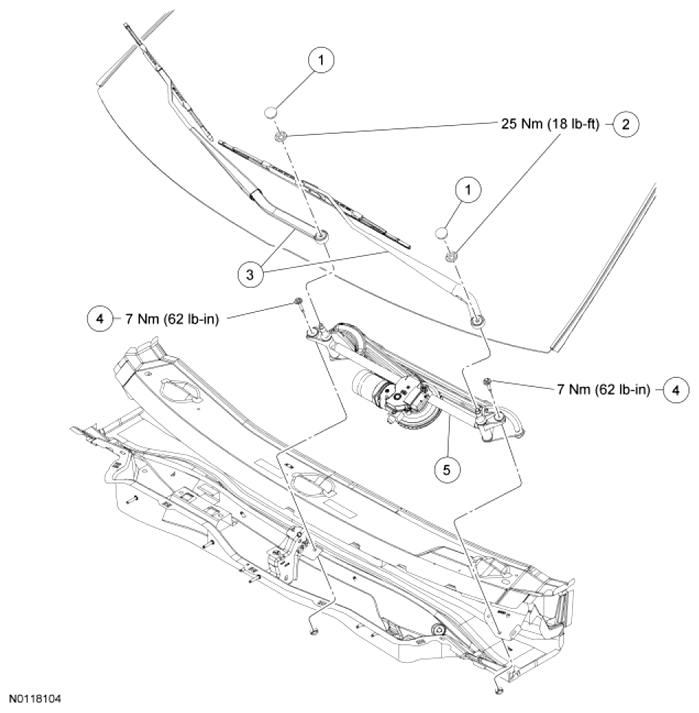

Fig 1: Exploded View Of Wiper And Washer System Components Location- Front

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	17C526	Windshield wiper pivot arm nut covers
2	W708841	Windshield wiper pivot arm nuts
3	17526 RH/17527 LH	Windshield wiper pivot arms
4	W707532	Windshield wiper mounting arm and pivot shaft assembly bolts (2 required)
5	17508	Windshield wiper mounting arm and pivot shaft assembly

1. For additional information, refer to the appropriate procedures.
