THX Sound

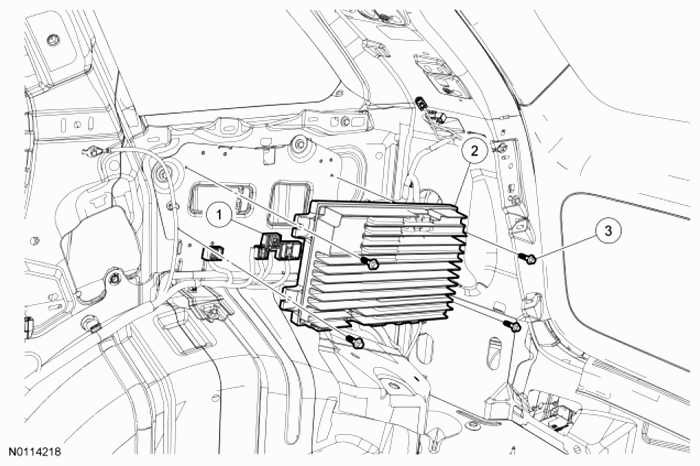

Fig 1: Exploded View Of Audio Digital Signal Processing Module - THX Sound
G07399251Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 - Audio DSP  module electrical connectors (part of 14A005)
2 18B849 Audio DSP  module
3 W505425-S Audio Digital Signal Processing (DSP) module screws (4 required)
